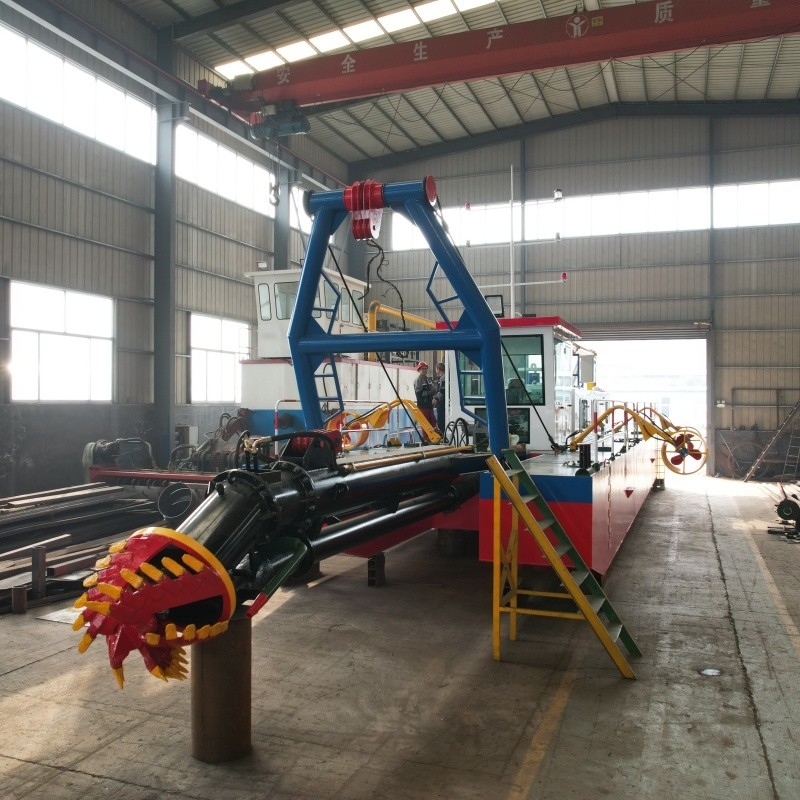

18 Inch Dredging Vessel for Shallow River Cleaning

cutter suction  Dredger makes use of a cutter head to loosen the underwater material to be dredged and pumps the

dredged material via a pipeline ashore or into barges. The powerful cutter swings of the  Dredger around the spud-pole

powered by winches while dredging, then the high pressure sand pump suck up  the loosened mixed materials to the

destination through the suction pipe. TheDredger is suitable for heavy duty and durable dredging operations with

dismountable structure.

The cutter suction Dredger  is often designed easily to transport by road, rail or by ship due to its reasonable size and

weight of the various dismountable modules. The complete Mud Pump Dredger  consists of one main pontoon and two

side pontoons which are mounted to the main pontoon using heavy duty steel eyes and pins at the bottom of the hull,

they are connected at deck level. The pontoons are of welded steel constructions with heavy frames, beams and

longitudinal girders. Extra reinforcements are placed where necessary to withstand all forces while dredging. Dredger

is widely used for river silt cleaning, delisting lakes and ponds, mining project, cleaning ports and sand production.

Features of cutter suction dredger:

1Reliable and efficiency: The key component like the diesel engine slurry pump and hydraulic control system adopts international brand.
2Tested in the pool delivery before :Quality testing for each dredger delivery before to insure all the function working smoothly.
3Service:Experienced engineers to guide the installation and training the local workers . Engineers can offer support all time .
4Installation and transportation:Dismantle structure is easily for installation and transportation .

FAQ:
 Need for reply:
1. How many cubic meter per hour for the clear water flow?
2. How many meters for the dredging depth?
3. How many meters for the discharge distance?
4. Will you use the dredger in the river,lake,sea or channel?
