Place of Origin: china
브랜드 이름: yongsheng
Model Number: csd450
지불과 운송 용어
Minimum Order Quantity: 1
가격: 560000usd/piece
Packaging Details: Container
Delivery Time: 60 work days
Payment Terms: T/T,L/C
Supply Ability: 100piece/Year
Customized: |
customized |
Condition: |
new |
Warranty: |
1 year |
Water Flow: |
3500m3/h |
Solid Capacity: |
700cbm/h |
Max.Dredging Depth 45°: |
15m |
Discharge Distance: |
1500m |
Dredger After Assembly: |
43.5*7.5*2 m Length*width*depth |
Dredger Structure: |
Can Be Assembly in Working Site |
Average Draught: |
1.2m |
Diameter Discharge Pipe: |
450mm/18inch |
Total Power: |
1057kw |
Main Engine: |
1,007kw |
Auxiliary Engine Power: |
425 kw |
Generator: |
30 kw |
Hydraulic Cutter Powerr: |
160 kw |
Customized: |
customized |
Condition: |
new |
Warranty: |
1 year |
Water Flow: |
3500m3/h |
Solid Capacity: |
700cbm/h |
Max.Dredging Depth 45°: |
15m |
Discharge Distance: |
1500m |
Dredger After Assembly: |
43.5*7.5*2 m Length*width*depth |
Dredger Structure: |
Can Be Assembly in Working Site |
Average Draught: |
1.2m |
Diameter Discharge Pipe: |
450mm/18inch |
Total Power: |
1057kw |
Main Engine: |
1,007kw |
Auxiliary Engine Power: |
425 kw |
Generator: |
30 kw |
Hydraulic Cutter Powerr: |
160 kw |

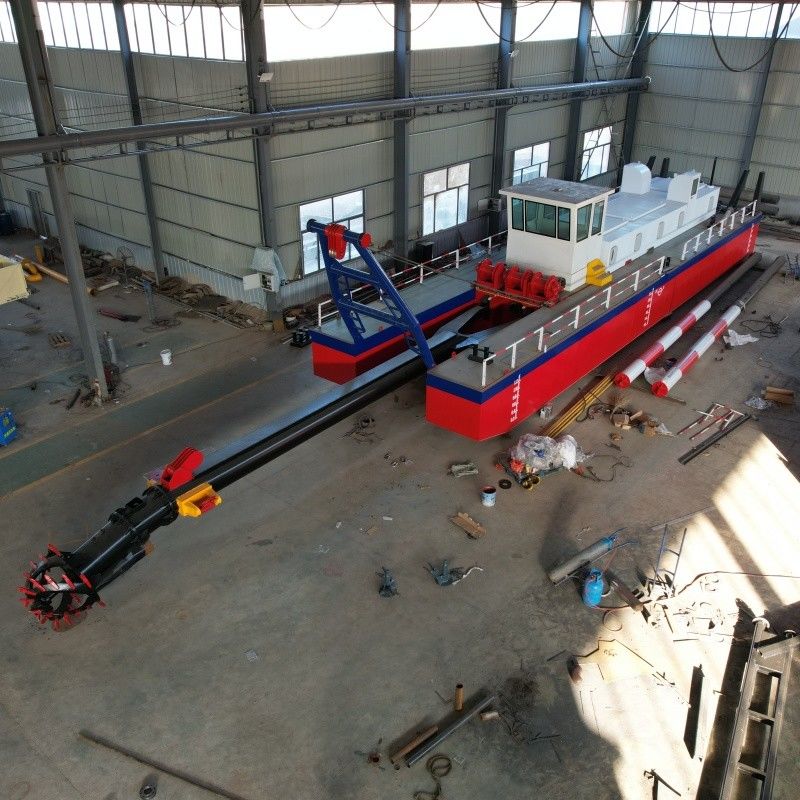

cutter suction dredger is the. one of the most popular . Cummins diesel engien (or weichai diesel
engine) .Shijiazhuang dredging pump. gerbox and coupler . anchor boom . depth sounder . Siemens
PLC . hydraulic control system are provided on yongsheng dredger.
Hydraulic cutter head rate to add the solid concentration. mixture through the suction pipe into the
discharge pipe by the pressure pump to arrived the destination .( power is from hydraulic electric
or both together). all main parts such as sand pump and hydraulic pump power from the Cummins
diesel engine . hydraulic pump provide the power for lifting winch swing winch . anchor boom winch
hydraulic spud carrier and cutter head so on .
| Model list for hydraulic cutter suction dredger | |||||||
| Model | Inch |
Diameter pipe |
Water flow |
Solid capacity |
Total power |
Dredging depth |
Discharge distance |
| YSCSD150 | 6 Inch | 150 mm | 260 m3/h | 30 cbm/h | 102 KW | 4m | 600 m |
| YSCSD200 | 8 Inch | 200 mm | 600 m3/h | 80 cbm/h | 213 KW | 6m | 800 m |
| YSCSD250 | 10 inch | 250 mm | 1,000 m3/h | 160 cbm/h | 367 KW | 8m | 1,100 m |
| YSCSD300 | 12 inch | 300 mm | 1,500 m3/h | 240 cbm/h | 591 KW | 10 m | 1,100 m |
| YSCSD350 | 14 inch | 350 mm | 2,400 m3/h | 360 cbm/h | 971 KW | 12m | 1,200 m |
| YSCSD400 | 16 Inch | 400 mm | 3,000 m3/h | 500 cbm/h | 1,057 KW | 14m | 1,400 m |
| YSCSD450 | 18 Inch | 450 mm | 3,500 m3/h | 700 cbm/h | 1,462 KW | 15m | 1,500 m |
| YSCSD500 | 20 Inch | 500 mm | 3,800 m3/h | 760 cbm/h | 1,648 KW | 15m | 1,600m |
| YSCSD600 | 24 Inch | 600 mm | 6,000 m3/h | 900 cbm/h | 2,511 KW | 15m | 1,800 m |
| YSCSD650 | 26 Inch | 650 mm | 7,000 m3/h | 1,400 cbm/h | 3,705 KW | Max.18m | 1,800m |
shandong yongsheng dredging machinery co., ltd main product : cutter suction dredger . jet suction
dredger . wheel bucket suction dredger . bucket chain river mining and sand dredger .trailing hopper
suction dredger .land mining machinery . multi function service working boat . sand transportation boat .
sand washing platform . meantime we can according to the customers request to do the any dredging
machinery .
FAQ:
Need for reply:
1. How many cubic meter per hour for the clear water flow?
2. How many meters for the dredging depth?
3. How many meters for the discharge distance?
4. Will you use the dredger in the river,lake,sea or channel?
